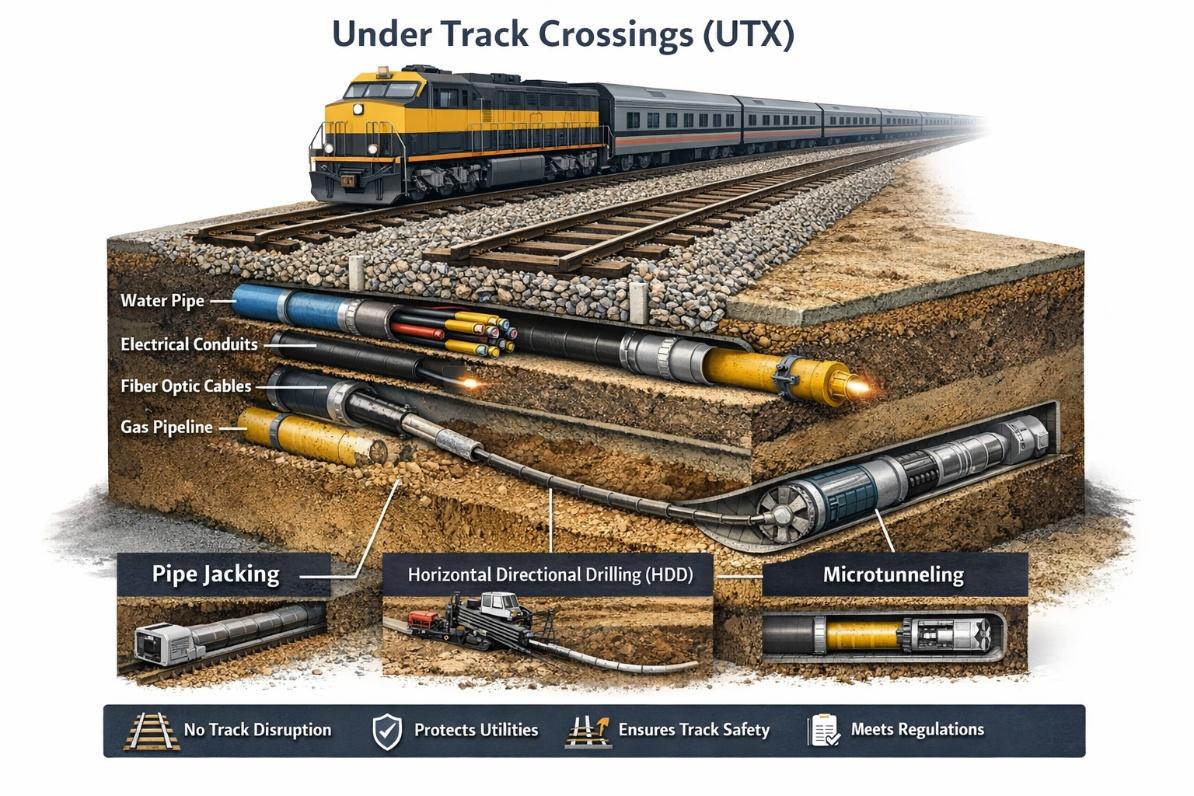

When essential utilities—such as water mains, electrical ducts, fibre-optic cables, or gas pipelines—need to cross beneath a railway corridor, engineers turn to a proven solution: the Under Track Crossing (UTX). These engineered crossings provide a safe, efficient, and non-intrusive method of delivering services without compromising railway operations or infrastructure integrity.
Why Use an Under Track Crossing?
Railway environments present unique engineering and operational challenges. UTXs are widely adopted because they address several critical constraints:
Uninterrupted Train Operations
Railway networks operate on tight schedules, making track possession for utility installation highly disruptive and often impractical. UTX methods allow installation beneath the track without removing rails or ballast, ensuring train services continue without interruption and minimising inconvenience to passengers and operators.
Maintaining Railway Safety
Railway tracks are subjected to significant dynamic loads from passing trains. Any disturbance to the track formation can lead to settlement or instability, increasing the risk of track defects or, in extreme cases, derailment. Properly designed and constructed UTXs preserve the integrity of the track structure and mitigate these risks.
Protection of Utility Assets
Utilities installed beneath railways experience substantially higher loads compared to those under roads or footways. To safeguard these assets, services are typically installed within a protective casing. This not only shields the utility from external stresses but also facilitates easier inspection, maintenance, or replacement if required.
Regulatory Compliance
Railway authorities enforce stringent engineering and safety standards. UTX installations are designed to meet these requirements, ensuring compliance while reducing risk and liability for utility owners and contractors.
Common UTX Installation Methods
The selection of a UTX installation technique depends on several factors, including ground conditions, crossing length, utility type, and railway authority requirements. The most commonly used methods include:
Pipe Jacking
This widely adopted trenchless method involves hydraulically pushing prefabricated pipe sections through the ground beneath the railway. Excavated material (spoil) is removed from within the pipe as the jacking progresses. Once installation is complete, utilities are placed inside the casing. Pipe jacking is favoured for its precision and minimal impact on the track structure.
Horizontal Directional Drilling (HDD)
HDD involves drilling a guided bore path beneath the railway, followed by pulling the utility pipe or casing through the completed bore. This method is particularly effective for longer crossings or where site access is constrained, although it may introduce slightly greater ground disturbance compared to other techniques.
Microtunnelling
A more advanced trenchless method, microtunnelling uses a remotely operated tunnel boring machine to excavate soil while simultaneously installing a pipeline. Although more complex and typically higher in cost, it offers exceptional accuracy and is well-suited for larger diameter crossings or challenging ground conditions.
Design Considerations
UTX projects require meticulous planning and execution due to the sensitive nature of railway infrastructure. Key considerations include:
- Maintaining track stability during and after installation
- Understanding and responding to ground conditions
- Managing construction risks and tolerances
- Ensuring long-term durability and access for maintenance
- Complying with all relevant railway standards and approvals
Conclusion
Under Track Crossings are a critical component in modern infrastructure delivery, enabling essential utilities to pass safely beneath active railway corridors. When designed and executed correctly, UTXs provide a robust, low-risk solution that protects both railway operations and utility assets.
By combining appropriate trenchless technology with sound geotechnical and engineering design, UTX installations can achieve long-term performance with minimal disruption—meeting the needs of both infrastructure providers and the communities they serve.
